WLS430 Wheel Loader Scale | Affordable & Accurate Loader Weighing System
Discover the WLS430 Static Loader Scale from Scale & Control Inc. Accurate, budget-friendly, and ideal for tractors, skid steers, and wheel loaders. Made in the USA. Request a quote today!
Designed for these class of machines:
The WLS430 Static Loader Scale is a cost-effective solution for accurate weighing in construction, agriculture, and landscaping applications. Whether you’re working with farm tractors, skid steers, or articulated wheel loaders, the WLS430 offers essential features to help you track load weights and improve efficiency — all at an unbeatable price point.
WLS430 Static Loader Scale The Built Better Series "Incomparable Quality & Features for the price"
- ±2% typical error on machine capacity
- Works with loaders, skid steers, small forklifts

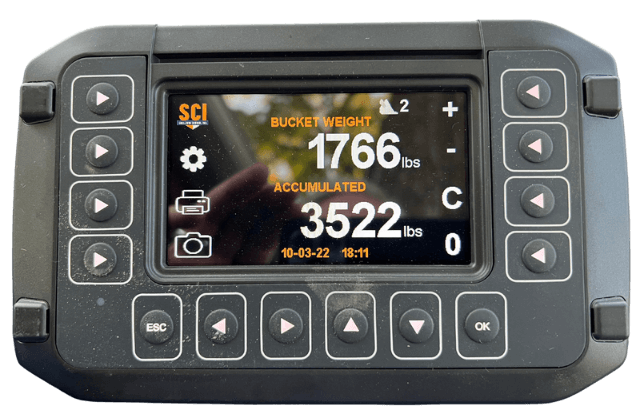

- Easy-to-read 4.3” color display with adjustable backlighting
- IP67 wash-down rated for harsh environments

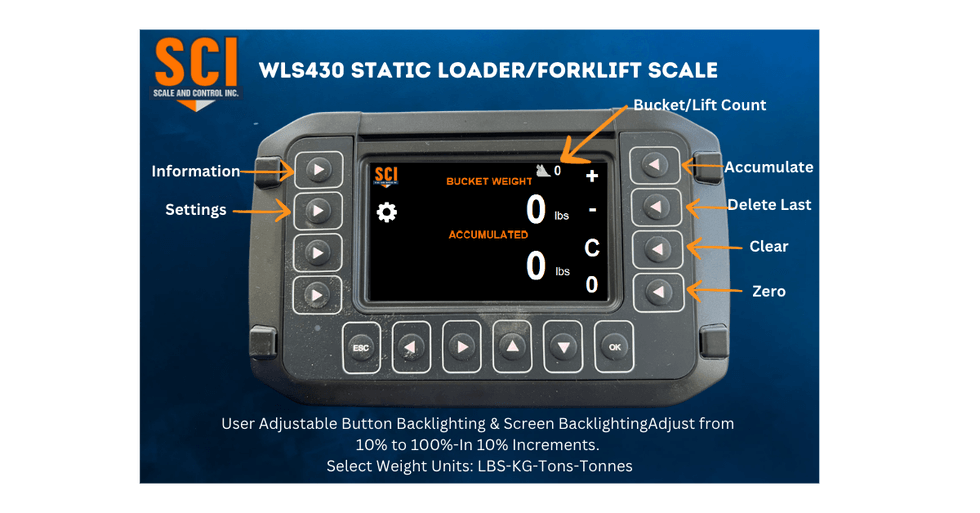

- Simple button controls: Zero, Clear, Add Load, Minus Load
- Accumulates total weight and counts loads
- Displays in Lbs, Tons, Kg, or Tonnes
- Internal buzzer alert (85dB)
- Wide operating range: -22ºF to +158ºF
- Powered by 8-32VDC
WLS430 Loader Scale Demo Key Features:
Frequently Asked Questions
Can the WLS430 be installed on older equipment?
Yes. The WLS430 is designed to retrofit easily to most loader models.
Does it store cumulative load weights?
yes, the system can accumulate weights for loading a truck allowing the operator to see the cumulative total loaded.
Is calibration required after installation?
Yes a simple 2 step calibration is required, please refer to the system installation manual or call SCI’s technical support line.

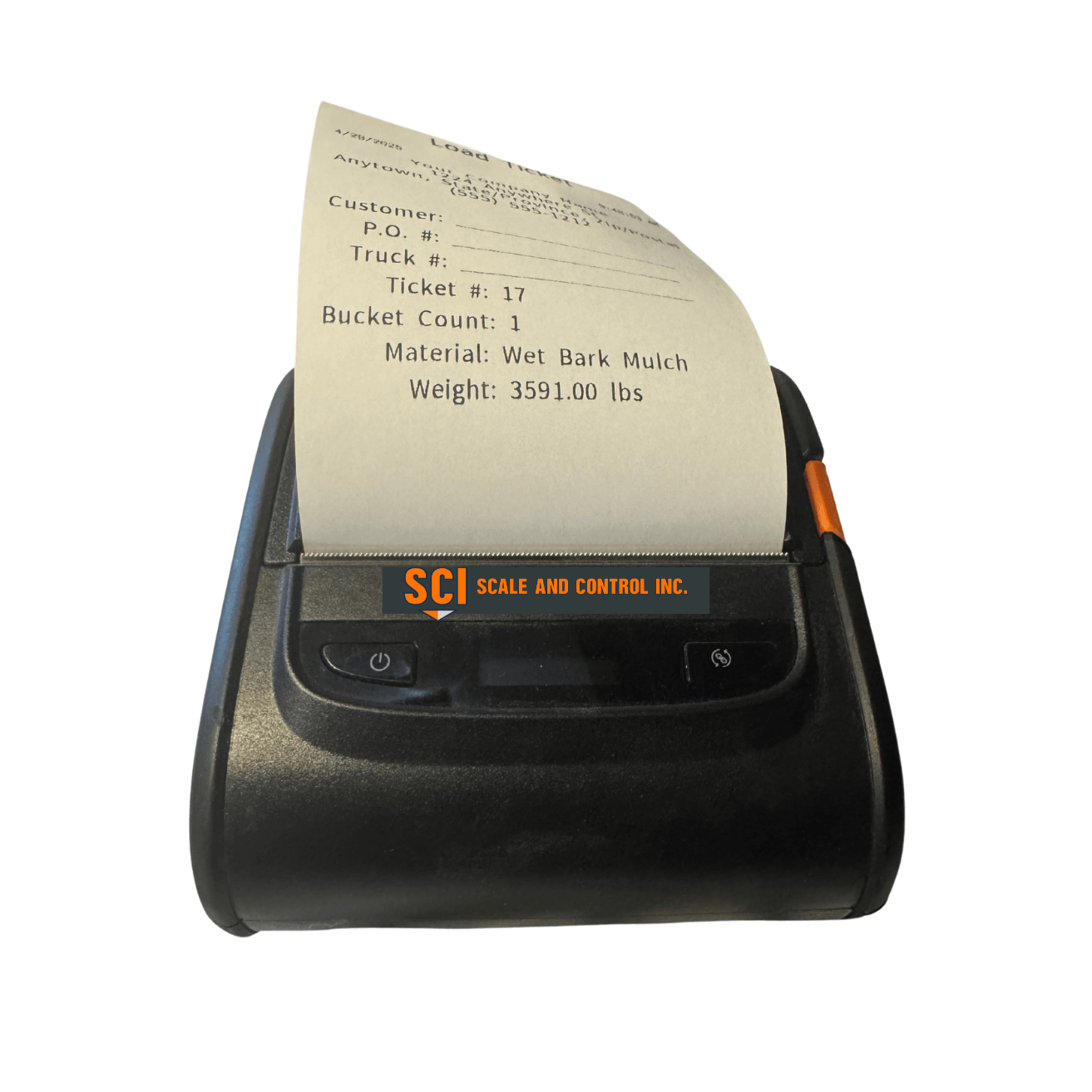

LTP Wireless Printer Option COMING SOON!
The WLS430 Wireless Ticket printer will give users the ability to print load tickets that can show the following:
- Time & Date Stamp
- Material Tpe Loaded
- Total Weight Loaded
- Ticket #
- Bucket Count
- You can setup the ticket to show your company name, address, and phone number as standard on the ticket header
- The operator can handwrite in the Customer name, P.O. #, & Truck Number onto the ticket.
With a simple connection to the scale display, users will enjoy the benefits of the wireless printing and ease of reprinting additional tickets.
Wireless Accessory Module Software Setup for WLS430 Printer
Wireless Printer usage for WLS430 Loader Scale Printer
Ready to get started?
Contact us today to learn more about pricing, compatibility, and fast shipping.
