The Industry’s Most Popular Trailer On-Board Scale Solution

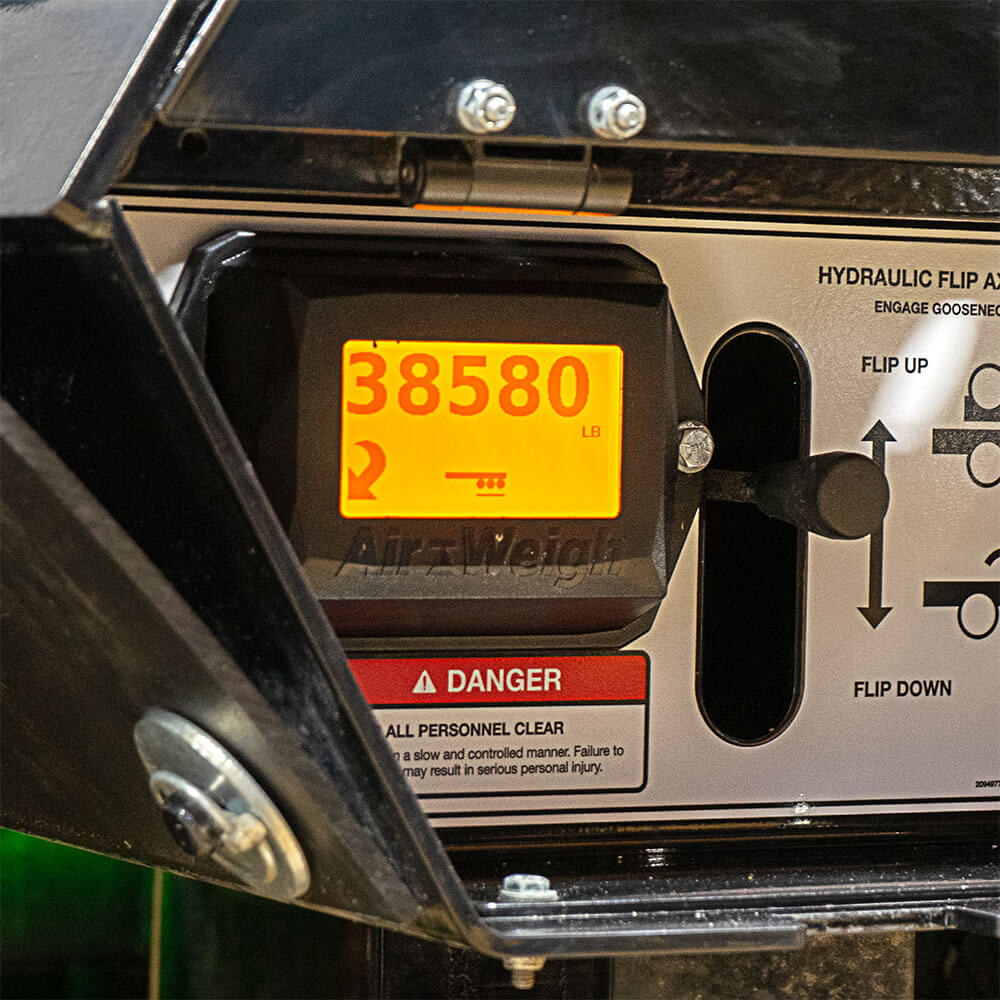

Our highly accurate and popular LoadMaxx Plus® scale can be used as a stand-alone trailer scale or as an important part of a full tractor/trailer scale solution. When LoadMaxx Plus® is combined with LoadMaxx® tractor scales, the system offers steer, drive and trailer suspension weights, GVW and net payload data to a single in-dash display.   By multiplexing through the existing 7-way connection, pairing is automatic, without any driver interaction.

Pair with LoadMaxx® for a full vehicle solution and view trailer net payload weights in the cab.

PACKED WITH ALL THE FEATURES YOU NEED

  • Easy-To-Install and Easy-To-Use for Owner Operators and Large Fleets
  • Trailer Drop and Hook Recognition – Automatically Displays Trailer Weight on LoadMaxx® Equipment Tractor Displays Through the Existing 7-Way
  • Dual Point Calibration (Empty and Heavy) For Accuracy Across the Scale Range
  • Ideal for Heavy Haul: Up to 7 Trailer Scale Weights in a Single Heavy Haul Configuration will Show Individually on In-Cab Display in Tractors Equipped the LoadMaxx® Scales

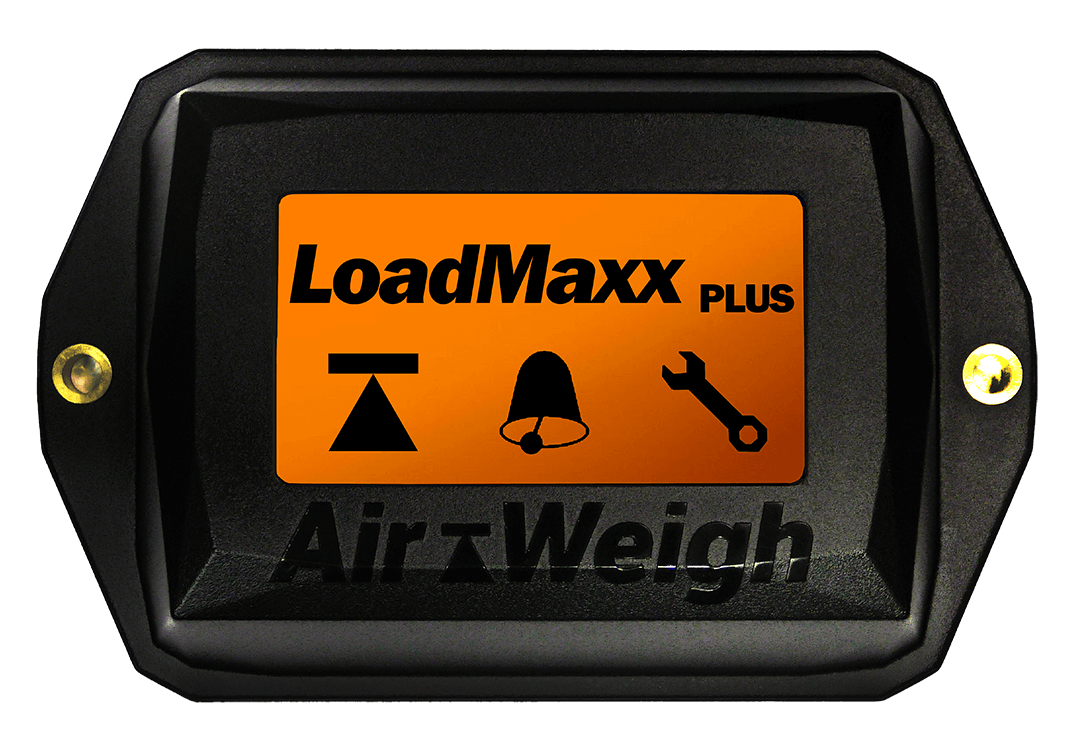

  • Rugged, Icon-Based Touch Screen Display – Testing to Stringent SAE Environmental Standards
  • Ability to Store Up to Four Calibrations for Multiple Trailer Suspension Configurations
  • Optional Audible Warning When Target Weight is Reached Plus Overweight Alarm
  • Pre-Calibrated for Most Popular 2 & 3 Axle Suspensions
  • PIN Protection Prevents Tampering After Calibration
  • Displays Weight in Pounds or Kilograms – User Selectable
  • Languages: English, Spanish, German, and French
  • Backed by Limited 3-Year Warranty
  • Designed, Manufactured & Supported in the USA

LoadMaxx Plus® Technical Specifications for Air Suspensions

  • High Precision Pressure Sensor Measures Fractions of One PSI
  • Automatically Compensates for Changes in Temperature, Altitude, and Humidity
  • Operating Temperatures: -40oF (-40oC) To +185oF (+85oC)
  • Industry-Leading Accuracy to 99+% of DOT Certified Scales
  • Tested to Stringent SAE Commercial Vehicle Standards
  • Voltage Range: 12-36 Volts

LoadMaxx Plus® Technical Specifications for Mechanical Suspensions

  • View Tandem and Single Point Suspension Weights on Single Touchscreen Display
  • Industry-Leading Accuracy to 97+% of DOT Certified Scales
  • Deflection Sensor Technology Measures Real-Time On-The-Ground Weights
  • Bracket Installs Easily to Axle Side, Safely Away From Top “No-Weld” Zone

LoadMaxx® & LoadMaxx Plus® - Better Together

The Industry’s Most Complete Tractor & Trailer On-Board Scale Solution

LoadMaxx® Tractor and LoadMaxx Plus® Trailer scales work seamlessly to provide a complete weighing solution for a single tractor/trailer or an entire fleet.  Designed for both drop-and-hook and dedicated fleets, the in-cab display shows steer, drive, trailer, GVW/GCW and net payload automatically, with no driver interaction.

Frequently Asked Questions

LoadMaxx® is the industry’s most popular on-board scale designed for medium and heavy duty trucks and tractors. LoadMaxx® works on straight trucks, tractors, and can be used as a straight truck solution or as part of the LoadMaxx® / LoadMaxx Plus® tractor trailer solution.  Straight trucks will show steer, drive, GVW and net payload on the in-cab display.  When LoadMaxx® is paired with a trailer equipped with LoadMaxx Plus® scales, trailer suspension weight is automatically added to the LoadMaxx® in-cab display with no driver intervention.

LoadMaxx® uses highly engineered sensors to measure air pressure (for air ride suspensions) or micro-flexing of axles (for mechanical suspensions). By calibrating the system with an empty weight entered at the time the vehicle is empty and loaded weight entered at the time the vehicle  is loaded, the LoadMaxx® algorithm calculates and displays the current weights of the suspension group(s).

The scale must be calibrated before initial use. After calibration, simply view Steer, Drive, GVW and Net Payload (with LoadMaxx Plus®) on the in-cab display, the LoadMaxx app on a smart device, or in integration telematics software. The weight data will update in real time.

Generally, once you’ve calibrated LoadMaxx® with accurate empty and loaded weights, there’s no need for recalibration. The system will continue to provide accurate weight readings. If the suspension undergoes significant damage, wear & tear, or changes such as replacing a leveling valve or air bag, a new recalibration is recommended.

For additional details, please visit our website for calibration manuals here: https://www.air-weigh.com/calibration-manuals/

Air-Weigh offers multiple buying options to integrate our advanced onboard scale systems into your fleet.  We work with almost all truck and trailer OEMs for installation on new vehicles, buying from our extensive dealer network, or buying directly from Air-Weigh to self-install on existing trucks, tractors, and trailers.
Visit https://www.air-weigh.com/#how-to-buy for more information.

Yes, Air-Weigh partners with almost all major truck  OEMs and body builders across North America and beyond. The easiest way to spec your new truck or tractor with Air-Weigh on-board scales is to contact your local dealer.

For a full list of partners, visit https://www.air-weigh.com/factory-installation/

Installation time varies depending on the configuration of air or mechanical suspensions.   However, an average LoadMaxx® installation on an air ride suspension is 2-3 hours or 4-5 hours with mechanical.

LoadMaxx Plus® is a scale designed for trailers with either air or mechanical suspensions. LoadMaxx Plus® can be used as a stand-alone trailer scale, but when combined with a LoadMaxx® for tractors, the combined system offers a complete vehicle solution showing steer, drive, GVW, trailer suspensions and net payload data on one single in-dash display.

Pairing for drop & hook is automatic between tractors equipped with LoadMaxx® and trailers equipped with LoadMaxx Plus®.

LoadMaxx® displays can change between English, Spanish, French, and German.

Pairing for drop & hook is automatic between tractors equipped with LoadMaxx® and trailers equipped with LoadMaxx Plus®.

Air-Weigh designs, manufactures, and supports all our products, including LoadMaxx®, at our headquarters in Eugene, Oregon, USA. Air-Weigh is certified and adheres to ISO 9001 standards.

Air-Weigh provides comprehensive support. You can reach the team:

By phone (toll-free): (888) 459-3247

By email: Support@Air-Weigh.com

Through the website chat: www.Air-Weigh.com

Support Hours are Monday through Friday, 7 AM – 4 PM Pacific Time (excluding holidays).

LoadMaxx® is covered under Air-Weigh’s limited warranty for 3 years from date of purchase. Air-Weigh warrants that our products will be free from defects in material and workmanship under normal use, service, and conditions with proper maintenance over that period.

For more information visit our warranty page on our website at: https://www.air-weigh.com/limited-warranty/
